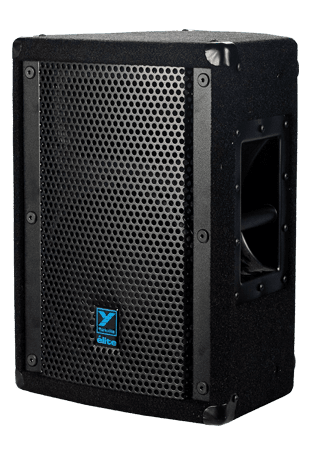

Yorkville E10P Powered
Roll over image to zoom in Click on image to zoom
Yorkville E10P Powered

Yorkville E10P Powered

Save $300.00
YorkvilleSKU: E10P
Price:
$849.00 $1,149.00

Description



10-inch / 1-inch - 350 watts

The E10P is an advanced, compact two-way active loudspeaker designed for a wide variety of pro-audio applications. Innovative processing is built-in to ensure optimum performance and clarity.


Features

  • Integrated 650 Watt Amplifier (Peak - 325 Watts Program)
  • 10-inch Woofer / 1-inch Compression Driver
  • Max SPL 129dB Peak (123dB Continuous)
  • Bi-Amplified Power Module
  • Designed for Front-of-House or Monitor Applications
  • 100° x 25° Horn with Peak and Average Horn Protection
  • Two Band EQ with LF Roll-Off and Live/Playback Mode Switches
  • Combi-Jack XLR and 1/4-inch Input
  • Integrated All Metal Speaker Standmount Adaptor
  • Solid 5/8-inch (15mm) Birch Plywood Construction
  • Made in Canada


Specifications

System Type Powered Loudspeaker
Active or Passive Active
Program Power (Watts) 325 Watts (650 Watts Peak)
Max SPL (dB) 129dB Peak (123dB Continuous)
Frequency Response (Hz +/- 3dB) 65 - 20k
Crossover Frequency (Hz) 1500
Driver Configuration 10-inch / 1-inch
HF Dispersion (°H x °V) 100 x 25
HF Protection Peak and Average Limiting
LF Protection Excursion, RMS
Cooling Scheme Convection
Power Cable Removable IEC
Power Switch Yes
Power Consumption (typ/max) 120VA / 200VA
Inputs 1 Combijack (XLR / 1/4-inch)
Input Impedance (Bal/UnBal) 4k ohms / 2k ohms
Input Sensitivity (Vrms Sine) Line in 1.4 at center, 0.35 at max
Level Controls Gain
EQ Controls Bass, Treble
Limiter Peak and Average limiting on horn and woofer
LED Indicators Power, Clip
Corners Metal
Feet Plastic Glides
Bar Handles One Side
Flying Hardware 5 (2 Top, 2 Bottom, 1 Pullback), 1/4" Threading
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials 15mm (5/8-inch) 11-ply Russian Birch
Port(s) Rear
Grille Perforated Metal
Covering / Finish Black Ozite (Carpet)
Optional Covering / Finishes Black Ultrathane Paint (E10PB)
Dimensions (DWH xbackW, inches) 12 x 13 x 18.5 x 5.5
Dimensions (DWH xbackW, cm) 30 x 33 x 45 x 14
Weight (lbs/kg) 34 / 15.5

Specifications subject to change without notice
