Yorkville EF10P Powered
Roll over image to zoom in Click on image to zoom

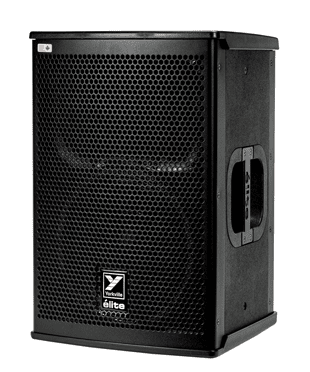

Yorkville EF10P Powered

Yorkville EF10P Powered

Save $380.00
YorkvilleSKU: EF10P
Price:
$1,019.00 $1,399.00

Description



10-inch / 1.5-inch - 600 watts

In the 1980's, Yorkville Sound changed the face of high-powered portable speakers with the launch of the élite series. Indestructible wood cabinets with high output drivers offered PA professionals & weekend warriors alike a new level of high SPL speakers in portable packages. 30 years later, and we are changing the rules again.


Features

  • Completely Redesigned Next Generation élite 600-watt Front of House Box
  • ABS Coated Birch Plywood Cabinet Construction
  • Multiband DSP Limiting with 4 Playback Performance Modes
  • 1.5-inch Titanium Diaphragm Compression Driver
  • 10-inch Neodymium Woofer with 2.5-inch Voice Coil
  • iOS and Android App for Added Cabinet Control
  • Made in Canada


Specifications

System Type 2-Way
Active or Passive Active
Program Power (Watts) 600 Watts (1200 Watts Peak)
Max SPL (dB) 129dB Peak (123dB Continuous)
Frequency Response (Hz +/- 3dB) 48 - 20k (Hz +/- 3dB)
Crossover Frequency (Hz) 1400
Driver Configuration LF - 10-inch, HF - 1.5-inch Diaphragm
HF Driver(s) 1.5 Inch Voicecoil (Titanium Diaphragm)
HF Dispersion (°H x °V) 90x30
LF Driver(s) 10-inch neo magnet w/2.5-inch Voice coil
HF Power Amplifier (Watts) 100
HF Amplifier Type 2-Tier High Headroom
LF Power Amplifier (Watts) 500
LF Amplifier Type Class-D
Power Cable 25 ft (7.6m) Heavy Gauge Detachable IEC
In / Out Connections 1 x XLR & 1/4-inch Combi-jack, 1/8" Line Inputs
1 x XLR microphone Input
1 x XLR & 1/4-inch Combi-jack Main Input
1 x XLR-M Thruput
Input Impedance (Bal/UnBal) 95KOhms / 90kOhms
Input Sensitivity (Vrms Sine) +4dBv / 1.23V
Controls Mixer Enable
Mic Input w/level
Line Input w/level
DSP Mode (Club, Concert, Vocal, Custom)
Sub (100Hz HP Filter)
Bluetooth Control Enable
Master Level
Bar Handles 1 x Side / 1 x Top
Flypoints 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side) + 1 Pullback (Back)
Pole Mount Adapter (1 3/8"-3.5cm) 1 Bottom (1 3/8-inch / 3.5cm)
Enclosure Materials ABS Coated Baltic Birch Plywood
Dimensions (DWH xbackW, inches) 13 x 13.7 x 20 x (Back Width) 11.1
Dimensions (DWH xbackW, cm) 33 x 34.8 x 50.8 x (Back Width) 28.2
Weight (lbs/kg) 43 / 19.5

Specifications subject to change without notice
