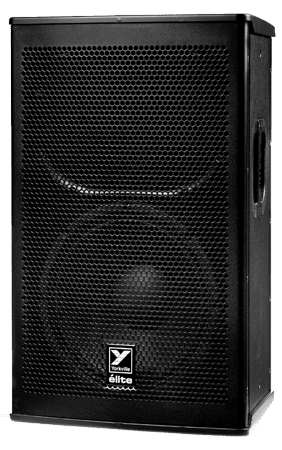

Yorkville EF12P Powered
Roll over image to zoom in Click on image to zoom
Yorkville EF12P Powered

Yorkville EF12P Powered

Save $530.00
YorkvilleSKU: EF12P
Price:
$1,299.00 $1,829.00

Description



12-inch / 3-inch - 1200 watts

The next generation of élite series speakers are here.


Features

  • High Output, High Quality and extremely durable Dedicated Front of House box
  • Completely Redesigned Next Generation Elite Cabinet
  • ABS Coated Birch Plywood Cabinet Construction
  • Multiband DSP Limiting with 4 Preset Playback Performance Modes
  • 3-inch Titanium Diaphragm Compression Driver for Reduced Distortion at High SPL
  • 12-inch Neodymium Woofer with 3-inch Voice coil
  • iOS and Android App for Added Cabinet Control (Coming Soon)
  • Made in Canada


Specifications

System Type 2-Way
Active or Passive Active
Program Power (Watts) 1200 Watts (2400 Watts Peak)
Max SPL (dB) 131dB Peak (125dB Continuous)
Frequency Response (Hz +/- 3dB) 47 - 16k (Hz +/- 3dB)
Crossover Frequency (Hz) 1100
Driver Configuration 12-inch, 3-inch Diaphragm
HF Driver(s) 3-inch Voice coil (Titanium Diaphragm)
HF Dispersion (°H x °V) 60x40
LF Driver(s) 12-inch Neo magnet w/3-inch Voice coil
HF Power Amplifier (Watts) 300
HF Amplifier Type 3-Tier High Headroom
LF Power Amplifier (Watts) 900
LF Amplifier Type Class-D
Power Cable 25 ft (7.6m) Heavy Gauge Detachable IEC
Current Draw 2A Typical, 3.2A Max
In / Out Connections 1 x XLR & 1/4-inch Combi-jack, RCA Line Inputs
1 x XLR microphone Input
1 x XLR & 1/4-inch Combi-jack Main Input
1 x XLR-M Thruput
Input Impedance (Bal/UnBal) 95KOhms / 90kOhms
Input Sensitivity (Vrms Sine) +4dBv / 1.23V
Controls Mixer Enable
Mic Input w/level
Line Input w/level
DSP Mode (Club, Concert, Vocal, Custom)
Sub (100Hz HP Filter)
Bluetooth Control Enable
Master Level
Bar Handles 2 x Side / 1 x Top
Flypoints 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback)
Pole Mount Adapter (1 3/8"-3.5cm) 1 Bottom (1 3/8-inch / 3.5cm)
Enclosure Materials ABS Coated Baltic Birch Plywood
Dimensions (DWH xbackW, inches) 14.5 x 18.6 x 28.2 x 11.1
Dimensions (DWH xbackW, cm) 36.8 x 47.25 x 71.6 x 28.2
Weight (lbs/kg) 59 / 26.8

Specifications subject to change without notice
