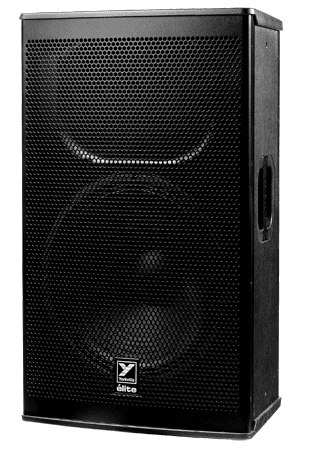

Yorkville EF15 Passive
Roll over image to zoom in Click on image to zoom
Yorkville EF15 Passive

Yorkville EF15 Passive

Save $450.00
YorkvilleSKU: EF15
Price:
$1,099.00 $1,549.00

Description



15-inch / 3-inch - 700 watts

Elite-level performance now available in passive speakers
15-inch Passive Loudspeaker


Features

  • 15-inch Two-way Passive Loudspeaker
  • 700 Watts (1400 Watts Peak / 450 Watts Continuous)
  • 128.5dB Peak (125.5dB Continuous) Max SPL
  • 55 - 18k (Hz +/- 3dB)
  • Made In Canada


Specifications

System Type Two Way
Active or Passive Passive
Program Power (Watts) 700 Watts (1400 Watts Peak / 450 Watts Continuous)
Biampable No
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 97
Max SPL (dB) 128.5dB Peak (125.5dB Continuous)
Frequency Response (Hz +/- 3dB) 55 - 18k
Crossover Frequency (Hz) 1900
Driver Configuration 15-inch, 3-inch Diaphragm
HF Driver(s) 3-inch Voicecoil (Titanium Diaphragm)
HF Horn ABS plastic custom Waveguide
HF Dispersion (°H x °V) 60x40
HF Protection 3xSK3 protection bulbs
LF Driver(s) 15-inch (3-inch voicecoil)
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Bar Handles 2
Flying Hardware 3/8-inch x 3 (2 Top, 1 Back)
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
Grille Perforated Metal
Covering / Finish Black Ultrathane Paint
Dimensions (DWH xbackW, inches) 14 x 18.5 x 30 x 12
Dimensions (DWH xbackW, cm) 35.5 x 47 x 76 x 30.5
Weight (lbs/kg) 61 / 27.8

Specifications subject to change without notice
