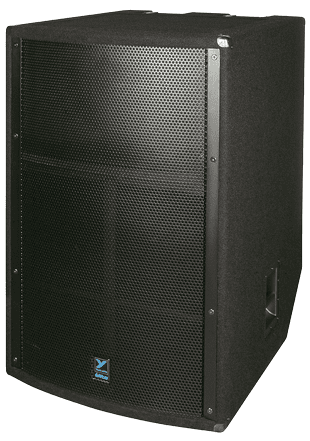

Yorkville LS1208 Passive
Roll over image to zoom in Click on image to zoom
Yorkville LS1208 Passive

Yorkville LS1208 Passive

Save $500.00
YorkvilleSKU: LS1208
Price:
$999.00 $1,499.00

Description



18-inch - 2000 watts

A two year investigation into the optimization of high output low frequency sound has yielded the LS1208 "basspipe" subwoofer system. The "basspipe" is a multiple flare horn, connected to an organ like pipe, slowly flaring to the mouth. The bandwidth is narrowed, optimized to a specific range in the lower registers. Outdoor measurements show very smooth, very high output in the 35Hz to 200Hz range. This is the highest efficiency that we have ever seen for a single 18" driver enclosure, especially with a gross volume of only 22 cubic feet. In addition, a significant gain is achieved when using two units side by side as the mouth nears maximum acoustic load.


Features

  • 4000 Watt 18-inch Subwoofer (2000 Watts Program)
  • Max SPL 139dB Peak (136dB Continuous)
  • Horn-Loaded Bass-Pipe Cabinet Design
  • 8 Ohm Design for Easy Amplifier Configuration
  • 35Hz - 200Hz Frequency Response
  • 2 x Speakon™ and 2 x 1/4-inch Parallel Inputs
  • Solid 5/8-inch (15mm) Birch Plywood Construction
  • Made in Canada


Specifications

System Type Horn Loaded Subwoofer
Active or Passive Passive
Program Power (Watts) 2000 Watts (4000 Peak / 1000 Continuous)
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 105
Max SPL (dB) 139dB Peak (136dB Continuous)
Frequency Response (Hz +/- 3dB) 35 - 200
Driver Configuration 18-inch Ceramic Magnet w/4-inch Voicecoil
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Other Controls / Features Speakon™ connectors feature a configuration switch which allows instant reversal of Speakon™ jack pinouts for easy single wire hook-up using optional four wire Speakon™ cables.
Corners Black Steel
Wheels 2 Rear
Bar Handles 2 Top, 2 Side
Enclosure Materials 15mm (5/8inch) 11-ply Russian Birch
Grille Heavy gauge perforated metal
Covering / Finish Black Ozite (Carpet)
Optional Covering / Finishes Black Ultrathane Paint (LS1208B)
Dimensions (DWH xbackW, inches) 33 x 28 x 43.5
Dimensions (DWH xbackW, cm) 83.8 x 71 x 110.5
Weight (lbs/kg) 181.7 / 82.4

Specifications subject to change without notice
