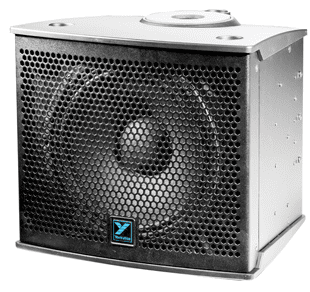

Yorkville NX10C Powered

Save $220.00
YorkvilleSKU: NX10C

Price:
Sale price$569.00 Regular price$789.00

Description



10-inch / 1-inch Coaxial - 300 watts

With it's 12 inch profile and innovative "through hole" pole mount design, the NX10C is the most versatile and compact professional PA cabinet ever. The innovative speaker stands "through-hole" design allows multiple NX10C cabinets to be mounted on a single standard speaker stand in a vertical array for very high volume applications. When wider horizontal coverage is required the NX10C cabinets can be rotated about the axis of the pole while still maintaining full phase coherency. 360 degrees of coverage can be easily achieved.



Features

  • No need to bring separate stands for stage lighting and speakers when NX10C's can be mounted under the light bars, saving valuable stage space.
  • For side-wash monitor applications on tight stages, the NX10C can be mounted under the front of house cabinets to provide a monitor signal that will be fully phase coherent with the front of house signal.
  • The innovative custom rear mounted handle also functions as a tilt stand allowing the NX10C to be used as a compact wide coverage floor monitor or center fill cabinet.
  • Versatile inputs for mic or line level sources as well as an 1/8th-inch TRS jack allow the NX10C to direct connect to any audio source.
  • Made in Canada


Specifications

Active or Passive Active
Program Power (Watts) 300 Watts (600 Watts Peak)
Biampable Self Powered
Max SPL (dB) 125dB Peak (122dB Continuous)
Frequency Response (Hz +/- 3dB) 80Hz - 20kHz
Crossover Frequency (Hz) 2500Hz
Driver Configuration Coaxial 10-inch/1-inch
HF Driver(s) 1-inch Throat, Ceramic Magnet, 1.4 inch PETP Film
HF Dispersion (°H x °V) 60 x 60
LF Driver(s) 10- inch Ceramic Magnet with a 2.5" voice coil
HF Amplifier Type Class A/B
LF Amplifier Type Two Tier Class- H
Power Cable Yes
Power Switch Yes
Power Consumption (typ/max) 100-240V, 12-5A, 1200W
Inputs 3 (Combi-jack Mic Input / Combi-jack Line Input / 1/8-inch TRS Line Input) 1/4" inputs are parallel
Input Sensitivity (Vrms Sine) 1.23 Vrms, +4dBu
Mixer Controls Contour (Playback/Vocal Mode)
Level Controls Line/Mic
Limiter Yes
LED Indicators Power, Clip
Feet Yes
Pole Mount Adapter (1 3/8"-3.5cm) Pole Through
Enclosure Materials Injection Molded Fiber Reinforced ABS / Aluminum/13ply birch
Grille Perforated Metal
Dimensions (DWH xbackW, inches) 13 X 13.5 X 12
Dimensions (DWH xbackW, cm) 33 x 34.3 x 30.5
Weight (lbs/kg) 25 / 11.3

Specifications subject to change without notice
