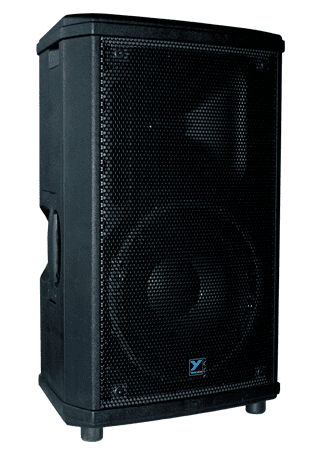

Yorkville NX25P-2 Powered
Roll over image to zoom in Click on image to zoom
Yorkville NX25P-2 Powered

Yorkville NX25P-2 Powered

Save $230.00
YorkvilleSKU: NX25P-2
Price:
$569.00 $799.00

Description



12-inch / 1-inch - 300 watts

The new NX25P-2 offers the best value in a 12-inch and horn active loudspeaker cabinet. The bi-amped 300-watt (Program) power module has a minimum of controls yet provides maximum versatility making the NX25P the ideal solution for many applications.


Features

  • Integrated 300 Watt Amplifier
  • Max SPL 124dB Peak (120dB Continuous)
  • XLR Microphone Input w/ Gain Control
  • Combi-jack XLR & 1/4-inch TRS Line Input w/ Gain Control
  • Two Band EQ
  • XLR Thru-put
  • 12-inch Ceramic Magnet Woofer
  • High quality 1-inch High Frequency Driver
  • Dual Purpose Cabinet Design (Front-of House or Monitor Orientation)
  • Ultra-Clear Reproduction
  • Integrated Flying Points for Installation Applications
  • Recessed Control / Input Panel
  • Made in Canada


Specifications

System Type 2-Way
Active or Passive Active
Program Power (Watts) 300 Watts (600 Watts Peak)
Biampable Self Powered
Biamp Operation Only Yes
Max SPL (dB) 124dB Peak (120dB Continuous)
Frequency Response (Hz +/- 3dB) 55 - 18k
Crossover Frequency (Hz) 3k
Driver Configuration 12-inch / 1-inch
HF Driver(s) 1.4-inch coil / 1-inch exit PETP Driver
HF Dispersion (°H x °V) 80 x 50
HF Protection Peak Limiter
LF Driver(s) 12-inch Ceramic Magnet
HF Amplifier Type Class A/B
LF Amplifier Type Two Tier Class H
Power Cable Yes
Power Switch Yes
Power Consumption (typ/max) 120 / 310 VA
Inputs 2
Inputs - 1/4" Jacks 1 Line / 1 Mic (XLR Combi jacks)
Mixer Controls Mic Gain
Line In Gain
Low and Hi EQ
Limiter Yes
LED Indicators Power/Activity/Limit
Feet Yes
Flying Hardware 1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback)
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials Molded Polypropylene
Grille Perforated Metal
Dimensions (DWH xbackW, inches) 12.25 x 16 x 26.5 x 9
Dimensions (DWH xbackW, cm) 31.12 x 40.6 x 67.3 x 22.9
Weight (lbs/kg) 39 / 17.6

Specifications subject to change without notice
