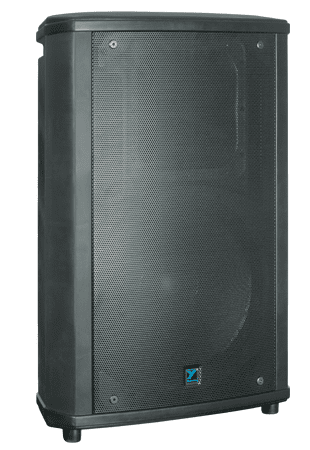

Yorkville NX300-2 Passive
Roll over image to zoom in Click on image to zoom
Yorkville NX300-2 Passive

Yorkville NX300-2 Passive

Save $140.00
YorkvilleSKU: NX300-2
Price:
$359.00 $499.00

Description



15-inch / 1-inch - 300 watts

The 300-watt NX300-2 is the most cost effective passive 15-inch and horn injection-molded loudspeaker available in the NX Series. Ideal for virtually any PA application, the unique trapezoidal shape employed on the NX300-2 allows the cabinet to be used as effectively as a monitor or front-of-house loudspeaker. The cabinet shape makes it ideal for mounting in tight arrays, or in multiple cabinet clusters.


Features

  • 600 Watt Full Range Loudspeaker (300 Watts Program)
  • Max SPL 125dB Peak (122dB Continuous)
  • Ultra-light injection molded Polypropylene construction
  • Dual purpose full range and wedge monitor format enclosure
  • Ultra-clear reproduction throughout bandwidth
  • Ultra-high efficiency performance requires less power for more output
  • High quality 1.5-inch (1-inch throat) High Frequency driver
  • Rotatable 80° x 50° horn
  • Integrated flypoints for flyware
  • Tough, full length metal grille
  • Recessed Input panels
  • Dual bulb CTL™ High Frequency Protection
  • Made in Canada


Specifications

System Type 2-Way
Active or Passive Passive
Program Power (Watts) 300 Watts (600 Watts Peak)
Biampable No
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 97
Max SPL (dB) 125dB Peak (122dB Continuous)
Frequency Response (Hz +/- 3dB) 60 - 18k
Crossover Frequency (Hz) 1500
Driver Configuration 15 inch / 1.5 inch
HF Driver(s) 1 inch Throat, Neo Magnet, 1.5 inch Aluminum Diaphragm
HF Program Power (Watts) 25
HF Impedance (Ohms) 8
HF Dispersion (°H x °V) 80 x 50 Rotatable
HF Protection Dual Bulb CTL™
LF Driver(s) 15 inch Ceramic Magnet, 2 inch voicecoil
LF Impedance (Ohms) 8
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Feet Yes
Bar Handles 1 (Side)
Flying Hardware 1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback)
Optional Flying Hardware NX Flyware / Eyebolts
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials Injection molded Polypropylene
Grille Perforated Metal
Other Details Side recesses for ease of lifting
Dimensions (DWH xbackW, inches) 15 x 22 x 32 x 9.5
Dimensions (DWH xbackW, cm) 38 x 56 x 84 x 24
Weight (lbs/kg) 49.8 / 22.6

Specifications subject to change without notice
