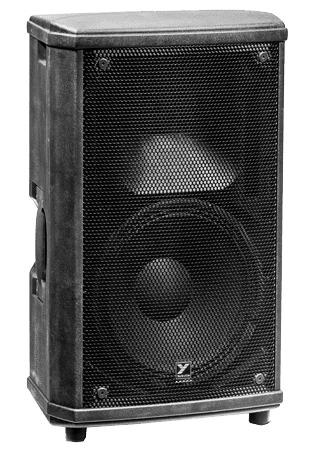

Yorkville NX55P-2 Powered
Roll over image to zoom in Click on image to zoom
Yorkville NX55P-2 Powered

Yorkville NX55P-2 Powered

Save $300.00
YorkvilleSKU: NX55P-2
Price:
$929.00 $1,229.00

Description



12-inch / 1-inch - 1000 watts

One of Yorkville's best selling fully featured active loudspeakers has been redesigned. The 2nd Generation NX55P-2 features a new power amplifier design that delivers an earth shattering 1000 Watts Program (2000 Watts Peak) making it our best sending, most versatile cabinet in the NX Series.


Features

  • Integrated 2000 Watt Amplifier Peak (1000 Watts Program)
  • Max SPL 134dB Peak (128dB Continuous)
  • Dual purpose full range and wedge monitor format enclosure
  • Lightweight, high efficiency, high tech bi-amped power module
  • +/- 6dB input trim control for individual cabinet level adjustment
  • XLR and TRS inputs / outputs for easy connection and looping
  • Multi-input source mixer for direct inputs
  • Direct microphone input with level control
  • Two-way overall EQ controls
  • High quality 1-inch High Frequency driver
  • Next generation 12-inch high power woofer
  • Integrated flying hardware
  • Recessed Mixer panel
  • Made in Canada


Specifications

System Type 2-Way
Active or Passive Active
Program Power (Watts) 1000 Watts (2000 Watts Peak)
Biampable Self Powered
Biamp Operation Only Yes
Max SPL (dB) 134dB Peak (128dB Continuous)
Frequency Response (Hz +/- 3dB) 45 - 18k
Crossover Frequency (Hz) 2k
Driver Configuration 12-inch / 1-inch
HF Driver(s) 1.4-inch Aluminum Diaphragm w/ 1-inch exit
HF Dispersion (°H x °V) 80 x 50
HF Protection Thermal / Peak Limiter
LF Driver(s) 12-inch w/ 3-inch voicecoil
LF Protection Thermal / Overcurrent
HF Amplifier Type Two Tier Class H
LF Amplifier Type Class D
Power Cable Yes
Power Switch Yes
Power Consumption (typ/max) 60Hz 2.0A / 50Hz 1,0A
Inputs - 1/4" Jacks 2 (line input) 2 (link in/out)
Inputs - XLR 1 (mic) 2 (line in/out)
Input Sensitivity (Vrms Sine) +4dBv / 1.23V
Mixer Controls Mixer on/off switch
Mic Input Gain
Line Input Gain
Treble/Bass Tweak
Level Controls +/- 6dB Main Volume
EQ Controls 100Hz HP Filter (LF Rolloff)
Limiter Yes
LED Indicators Power/Clip/Limit
Feet Yes
Bar Handles 1 (Side)
Flying Hardware 1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback)
Optional Flying Hardware NXF Flyware
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials Molded Polypropylene
Grille Perforated Metal
Covering / Finish Black
Dimensions (DWH xbackW, inches) 12.25 x 16 x 26.5 x 9
Dimensions (DWH xbackW, cm) 31.12 x 40.6 x 67.3 x 22.9
Weight (lbs/kg) 41 / 18.6

Specifications subject to change without notice
