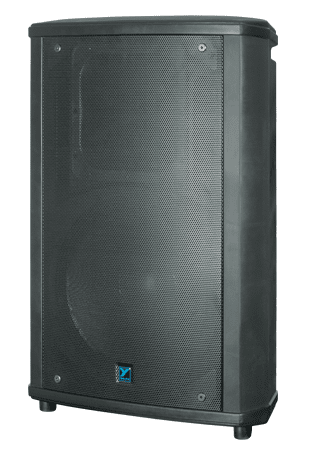

Yorkville NX600-2 Passive
Roll over image to zoom in Click on image to zoom
Yorkville NX600-2 Passive

Yorkville NX600-2 Passive

Save $260.00
YorkvilleSKU: NX600-2
Price:
$689.00 $949.00

Description



15-inch / 1.5-inch - 1000 watts

The NX600-2 is the first 15-inch and horn molded loudspeaker from Yorkville Sound. This 1000-watt passive box is using a new injection molded technology and features a first for composite loudspeakers, a rotatable 80° x 50° horn patterned after the custom ABS waveguide horn used in our popular élite loudspeaker line.


Features

  • 2000 Watt Full Range Loudspeaker (1000 Watts Program)
  • Ultra-light injection molded Polypropylene construction
  • Dual purpose full range and wedge monitor format enclosure
  • Ultra-clear reproduction throughout bandwidth
  • Max SPL 122dB Peak (125dB Continuous)
  • Ultra-high efficiency performance requires less power for more output
  • High quality 1.5-inch High Frequency drivers (1-inch throat)
  • Next generation woofer / driver / horn technology
  • Rotatable 80° x 50° horn
  • Integrated flying hardware (3/8" threaded holes)
  • Tough, full length metal grille
  • Recessed Input panels
  • PTC™ HF protection system
  • Made in Canada


Specifications

System Type 2-Way
Active or Passive Passive
Program Power (Watts) 1000 Watts (2000 Watts Peak)
Biampable No
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 98
Max SPL (dB) 131dB Peak (128dB Continuous)
Frequency Response (Hz +/- 3dB) 60 - 26k
Crossover Frequency (Hz) 1300
Driver Configuration 15-inch / 1.5-inch
HF Driver(s) 1.5-inch Polyester voicecoil (1-inch Throat)
HF Dispersion (°H x °V) 80 x 50 Rotatable
HF Protection PTC™
LF Driver(s) 15-inch w/ 3-inch voicecoil
LF Impedance (Ohms) 8
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Feet Yes
Bar Handles 1 (Side)
Flying Hardware 1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback)
Optional Flying Hardware NX Flyware / Eyebolts
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials Injection molded Polypropylene
Grille Perforated Metal
Other Details Side recesses for ease of lifting
Dimensions (DWH xbackW, inches) 15 x 22 x 32 x 9.5
Dimensions (DWH xbackW, cm) 38 x 56 x 84 x 24
Weight (lbs/kg) 48.5 / 22

Specifications subject to change without notice
