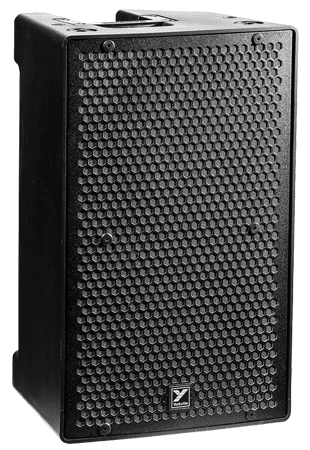

Yorkville PS10P Powered
Roll over image to zoom in Click on image to zoom
Yorkville PS10P Powered

Yorkville PS10P Powered

Save $400.00
YorkvilleSKU: PS10P
Price:
$1,049.00 $1,449.00

Description



10-inch / 1-inch - 800 watts

The most compact cabinet in the Parasource Series, the PS10P uses a high efficiency 10-inch woofer (with 2-inch voicecoil) to deliver extreme low end punch from as small a physical cabinet volume as possible. Wide 90° x 70° (H x V) conical horn delivers improved constant directivity and far better midrange response than competitive cabinets in this class.


Features

  • Integrated 1600 Watt Amplifier Peak Power (800 Watts Program)
  • 10-inch Woofer with 2-inch Voicecoil
  • 1-inch Compression Driver
  • 90° x 70° Horn with Thermal and Peak Protection
  • Max SPL 127dB Peak (124dB Continuous)
  • High Efficiency Bi-Amplified Class-D Power Module
  • Passive Cooling Scheme (No Loud Fans Required)
  • Designed for Front-of-House or Monitor Applications
  • Integrated Two Channel Mini Mixer with XLR Microphone, 1/4-inch and RCA Line Inputs
  • Multiband Limiting Delivers Extremely Transparent Listening Experience (Vocals Are Not Modulated By Bass)
  • Integrated All Metal Speaker Standmount Adaptor
  • Integrated Reinforced Flypoints
  • Lightweight ABS Cabinet Construction
  • Optional PS10PCOVER available
  • Made in Canada


Specifications

System Type Active Loudspeaker
Active or Passive Active
Program Power (Watts) 800 watts (1600 watts peak)
Max SPL (dB) 127dB Peak (124dB Continuous)
Frequency Response (Hz +/- 3dB) 55hz to 20kHz
Driver Configuration 10-inch / 1-inch
HF Dispersion (°H x °V) 90 x 70
HF Protection Thermal/Peak Limiter
LF Driver(s) 10-inch Ceramic w/ 2-inch Voicecoil
LF Protection Thermal/Multiband Peak Limiter
LF Processing Dynamic Bass Extension
Cooling Scheme Passive
Power Cable Detachable IEC
Inputs 1/4-inch, XLR, RCA
Inputs - 1/4" Jacks Yes (x2)
Inputs - XLR Yes (x2)
Input Sensitivity (Vrms Sine) 1.23 Vrms +4dBu
Mixer Controls Sub Mode HPF, Bass Boost, Mixer Enable
Level Controls Master Level, Mic Level, Line Level
LED Indicators Power, Limit, Clip
Bar Handles Yes
Flying Hardware EYEBOLT1/4A
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials ABS
Baffle Material ABS
Grille Perforated Metal
Dimensions (DWH xbackW, inches) 12 x 14 x 23
Dimensions (DWH xbackW, cm) 30.5 x 35.5 x 58.5
Weight (lbs/kg) 40 / 18.2

Specifications subject to change without notice
