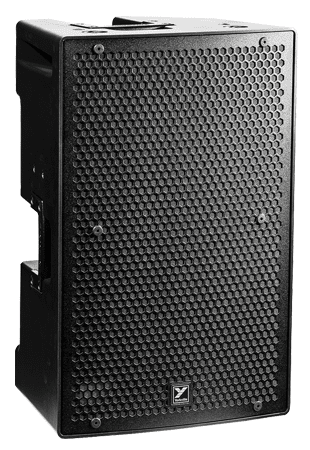

Yorkville PS15P Powered
Roll over image to zoom in Click on image to zoom
Yorkville PS15P Powered

Yorkville PS15P Powered

Save $520.00
YorkvilleSKU: PS15P
Price:
$1,349.00 $1,869.00

Description



15-inch / 1-inch - 1400 watts

As the largest cabinet in the Parasource Series, the PS15P delivers maximum bottom end from a high power 15-inch ceramic woofer (with 3-inch voicecoil). A focused 85° x 50° (H x V) conical horn delivers improved constant directivity and better midrange response than competitive cabinets in this class.


Features

  • Integrated 4400 Watt Amplifier Peak Power (1400 Watts Program)
  • 15-inch Woofer with 3-inch Voicecoil
  • 85° x 50° Horn with Thermal and Peak Protection
  • 38mm Compression Driver with 1-inch Exit
  • Max SPL 134dB Peak (129dB Continuous)
  • High Efficiency Bi-Amplified Class-D Power Module
  • Passive Cooling Scheme (No Loud Fans Required)
  • Designed for Front-of-House or Monitor Applications
  • Integrated Two Channel Mini Mixer with XLR Microphone, 1/4-inch and RCA Line Inputs
  • Multiband Limiting Delivers Extremely Transparent Listening Experience (Vocals Are Not Modulated By Bass)
  • Integrated All Metal Speaker Standmount Adaptor
  • Integrated Reinforced Flypoints
  • Lightweight ABS Cabinet Construction
  • Optional PS15PCOVER available
  • Made in Canada


Specifications

System Type Active Loudspeaker
Active or Passive Active
Program Power (Watts) 1400 watts (4400 watts peak)
Max SPL (dB) 134dB Peak (129dB Continuous)
Frequency Response (Hz +/- 3dB) 45Hz to 26kHz
Crossover Frequency (Hz) 1.0kHz
Driver Configuration 15-inch / 1-inch
HF Driver(s) 38mm Voicecoil w/ 1-inch Exit
HF Dispersion (°H x °V) 85 x 50
HF Protection Thermal/Peak Limiter
LF Driver(s) 15-inch (3 inch voicecoil)
LF Protection Thermal/Multiband Peak Limiter
MF Processing Dynamic Bass Extension
Cooling Scheme Passive
Power Cable Detachable IEC
Power Consumption (typ/max) 2.4A/3.0A @ 120Vac 1.2/2.5 A @230Vac
Inputs 1/4-inch, XLR, RCA
Inputs - 1/4" Jacks Yes (x2)
Inputs - XLR Yes (x2)
Input Sensitivity (Vrms Sine) 1.23 Vrms +4dBu
Mixer Controls Sub Mode HPF, Bass Boost, Mixer Enable
Level Controls Master Level, Mic Level, Line Level
LED Indicators Power, Limit, Clip
Bar Handles Yes
Flying Hardware EYEBOLT1/4A
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials ABS
Baffle Material ABS
Grille Perforated Metal
Dimensions (DWH xbackW, inches) 14.2 x 20.5 x 30.75
Dimensions (DWH xbackW, cm) 36.1 x 52.1 x 78.1
Weight (lbs/kg) 65 / 29.5

Specifications subject to change without notice
