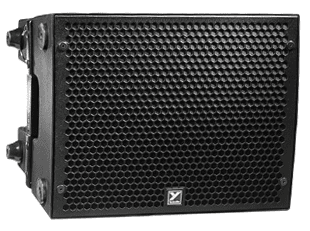

Yorkville PSA1 Powered
Roll over image to zoom in Click on image to zoom
Yorkville PSA1 Powered

Yorkville PSA1 Powered

Save $700.00
YorkvilleSKU: PSA1
Price:
$1,799.00 $2,499.00

Description



4 x 6-inch / 2 x 1-inch - 700 watts

Yorkville Sound's Paraline Series active full range loudspeaker system delivers the clarity and precision of a complex line array system in a compact, user friendly format. Innovative cabinet design uses Yorkville Sound's proven Paraline high frequency lens technology pioneered in our flagship VTC Elevation Series line array cabinets.


Features

  • Ultra High Performance Compact Active PA System
  • Uses Patented Paraline Horn Lens Technology
    (from Yorkville Sound's Flagship VTC Elevation Series Vertical Array Touring Systems)
  • High quality Speaker Components
  • Focused 15° Vertical Dispersion for Minimum Interference Between Arrayed Cabinets
  • Wide 110° Horizontal Dispersion Pattern
  • Manufactured Using Light-weight/Strong ABS Cabinet Material
  • Stacks using Standard Speaker Stand on Integrated Dual Angle Stand Mount Adaptor
    (Maximum Two Cabinets per stand)
  • Installation Hardware Available
  • Up to Four PSA1 Cabinets Can Be Easily Powered on one 15 Amp Circuit
  • Optional PSA1COVER available
  • Made in Canada


Specifications

Active or Passive Active
Program Power (Watts) 700 Program (1200 Watts Peak)
Biampable Biamp
Max SPL (dB) 128dB Peak (125dB Continuous)
Frequency Response (Hz +/- 3dB) 75Hz-20K
Crossover Frequency (Hz) 1.2K
Driver Configuration 2x1", 4x6"
HF Driver(s) 2x1-inch Ceramic w/ 1.75-inch VoiceCoil
HF Program Power (Watts) 75 Watts (200 Watts Peak)
HF Dispersion (°H x °V) 110x15
HF Protection Peak and Average Limiting
LF Driver(s) 4x6-inch neo with 45mm VC
LF Program Power(Watts) 675 Watts Program (1000 Watts Peak)
LF Impedance (Ohms) 2 Ohm Load
LF Protection Excursion, RMS
HF Power Amplifier (Watts) 75W
HF Amplifier Type 2-Tier Class H
LF Power Amplifier (Watts) 625W
LF Amplifier Type Class D
Cooling Scheme Convection
Power Cable Removable Locking IEC Input and Loop Thru Output
Power Switch Yes
Power Consumption (typ/max) 135 VA / 225 VA
Inputs 1 Combijack (XLR / 1/4-inch)
Input Sensitivity (Vrms Sine) Line in 1.4 at center, 0.35 at max
Level Controls Volume
EQ Controls HF Boost switch, Fullrange/Sub switch
Limiter Peak and Average limiting on horn and woofer
LED Indicators Power, Limit, Clip
Optional Flying Hardware 1 x PSA1RIGKIT per cabinet
1 x PSA1FRAME1 per hung
Enclosure Materials Injection Molded ABS
Baffle Material Injection Molded ABS
Covering / Finish Paint
Optional Covering / Finishes Optional Colours available
Dimensions (DWH xbackW, inches) 14.5 x20.5 x16
Dimensions (DWH xbackW, cm) 36.8 x 52.1 x 40.6
Weight (lbs/kg) 52 / 23.6

Specifications subject to change without notice
