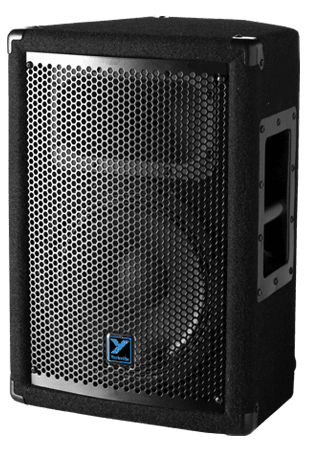

Yorkville YX10 Passive
Roll over image to zoom in Click on image to zoom
Yorkville YX10 Passive

Yorkville YX10 Passive

Save $70.00
YorkvilleSKU: YX10
Price:
$199.00 $269.00

Description


10-inch / 1.4-inch - 150 watts

The YX10 delivers maximum performance in the most compact loudspeaker available in the YX Series. Engineered in North America, the YX10 benefits from Yorkville's fifty plus years of PA enclosure design experience in the creation of this ultra compact general purpose passive loudspeaker enclosure.


Features

  • 200 Watt Full Range Loudspeaker
  • 10-inch Woofer
  • 1-inch Compression Driver (1.4-inch Voicecoil)
  • Designed for Front-of-House or Monitor Applications
  • 100° x 30° Injection Molded ABS Waveguide Horn
  • Innovative Dual Bulb CTL™ High Frequency Driver Protection
  • 2 x Speakon™ and 2 x 1/4-inch Parallel Inputs
  • Integrated All Metal Speaker Standmount Adaptor
  • Solid 5/8-inch (15mm) Plywood Construction
  • YX10B-FLY (Flyable - Painted Version)


Specifications

System Type 2-Way
Active or Passive Passive
Program Power (Watts) 150
Biampable No
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 97
Max SPL (dB) 119
Frequency Response (Hz +/- 3dB) 70 - 20k
Crossover Frequency (Hz) 2k
Driver Configuration 10 inch / 1.4 inch
HF Driver(s) 1.4 inch Aluminum (1 inch Throat)
HF Horn Injection Molded ABS
HF Dispersion (°H x °V) 100 x 30
HF Protection CTL™
LF Driver(s) 10 inch Ceramic
LF Program Power(Watts) 150
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Corners Metal
Feet Plastic Glides
Bar Handles 1 (Side)
Flyable Version YX10B-FLY (EYEBOLT3/8A x 4 Required)
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials 15mm (5/8inch) Plywood
Grille Custom Punched Black Perforated Metal
Covering / Finish Black Ozite
Dimensions (DWH xbackW, inches) 12 x 13.5 x 19 x 5.75
Dimensions (DWH xbackW, cm) 30.5 x 34.3 x 48.3 x 14.6
Weight (lbs/kg) 24 / 10.9

Specifications subject to change without notice
