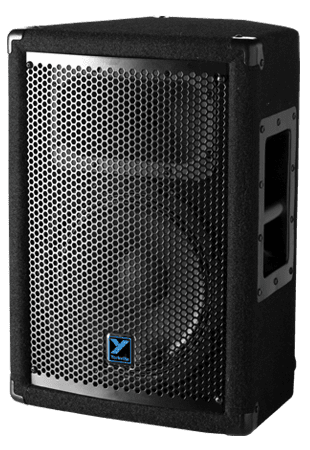

Yorkville YX10P Powered
Roll over image to zoom in Click on image to zoom
Yorkville YX10P Powered

Yorkville YX10P Powered

Save $150.00
YorkvilleSKU: YX10P
Price:
$389.00 $539.00

Description


10-inch / 1.4-inch - 200 watts

The most compact powered speaker in the line, the YX10P is an ideal solution for small PA applications where a simple playback solution is all that is needed. An integrated two channel mixer allows the YX10P to operate as a standalone PA for conferences, presentations and public address applications.


Features

  • 200 Watt Integrated Amplifier
  • Bi-amplified Power Module
  • High Powered 10-inch Woofer
  • Max SPL 119dB (Continuous)
  • 90 x 40 Custom ABS Waveguide Horn
  • 1.4-inch Aluminum Diaphragm Horn Driver (1-inch Throat)
  • ¼-inch, XLR and 1/8-inch TRS Inputs
  • Solid Plywood Cabinet Construction
  • All Metal Grille, Integrated bar Handles & Stand Mount


Specifications

System Type Active Loudspeaker
Active or Passive Active
Program Power (Watts) 200 Watts
Max SPL (dB) 119 dB
Frequency Response (Hz +/- 3dB) 70Hz - 20kHz
Crossover Frequency (Hz) 3.5kHz
Driver Configuration 10-inch / 1-inch
HF Driver(s) 1.4-inch Aluminum Diaphragm / 1-inch exit
HF Program Power (Watts) 20 Watts
HF Dispersion (°H x °V) 90 (h) x 40 (v)
HF Protection Peak Limiter
LF Driver(s) 10-inch Ceramic Magnet
LF Program Power(Watts) 150 Watts
LF Protection Peak Limiter
Total Power (Watts) 170 Watts
Power Switch Yes - back
Power Consumption (typ/max) 120 / 200VA
Inputs XLR / 1/4-inch TRS / 1/8th-inch (3.5mm) TRS
Mixer Controls Independent Gain Controls (Inputs 1 and 2), Global Bass/ Treble Control, Link Input and Output
Level Controls Yes
EQ Controls Yes - Bass / Treble Controls
Bar Handles 1
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials 15 mm (5/8-inch) plywood
Baffle Material 15 mm (5/8-inch) plywood
Grille Custom Punched Black Perforated Metal
Covering / Finish Black Ozite
Dimensions (DWH xbackW, inches) 12 x 13.5 x 19 x 5.75
Dimensions (DWH xbackW, cm) 30.5 x 34.3 x 48.3 x 14.6
Weight (lbs/kg) 28 / 12.7

Specifications subject to change without notice
