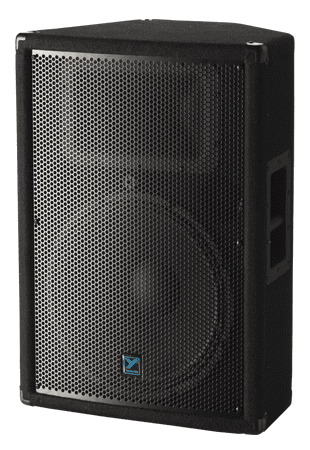

Yorkville YX15 Passive
Roll over image to zoom in Click on image to zoom
Yorkville YX15 Passive

Yorkville YX15 Passive

Save $130.00
YorkvilleSKU: YX15
Price:
$299.00 $429.00

Description


15-inch / 1.4-inch - 300 watts

The YX15 delivers outstanding performance in a highly versatile full range loudspeaker built for applications where higher power is required. Engineered in North America, the YX15 benefits from Yorkville's fifty plus years of PA enclosure design experience in the creation of this high-value general-purpose passive 15-inch and horn loudspeaker enclosure.


Features

  • 300 Watt Full Range Loudspeaker
  • 15-inch Woofer
  • 1-inch Compression Driver (1.4-inch Voicecoil)
  • Designed for Front-of-House or Monitor applications
  • 90° x 40° Injection Molded ABS Waveguide Horn
  • Innovative Dual Bulb CTL™ High Frequency Driver Protection
  • 2 x Speakon™ and 2 x 1/4-inch Parallel Inputs
  • Integrated All Metal Speaker Standmount Adaptor
  • 5/8-inch (15mm) Plywood Construction


Specifications

System Type 2-Way
Active or Passive Passive
Program Power (Watts) 300
Biampable No
Nominal Impedance (Ohms) 8
Sensitivity (dB @1Watt/1m) 99
Max SPL (dB) 124
Frequency Response (Hz +/- 3dB) 60 - 20k
Crossover Frequency (Hz) 1800
Driver Configuration 15 inch / 1.4 inch
HF Driver(s) 1.4 inch Aluminum (1-inch Throat)
HF Horn Injection Molded ABS
HF Dispersion (°H x °V) 90 x 40
HF Protection Dual Bulb CTL™
LF Driver(s) 15 inch Ceramic
LF Program Power(Watts) 300
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Corners Metal
Feet Plastic Glides
Bar Handles 2 (Side)
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials 15mm (5/8inch) Plywood
Grille Custom Punched Black Perforated Metal
Covering / Finish Black Ozite
Dimensions (DWH xbackW, inches) 15.5 x 19.25 x 27.5 x 7.5
Dimensions (DWH xbackW, cm) 39.4 x 48.9 x 69.9 x 19
Weight (lbs/kg) 45 / 20.4

Specifications subject to change without notice
