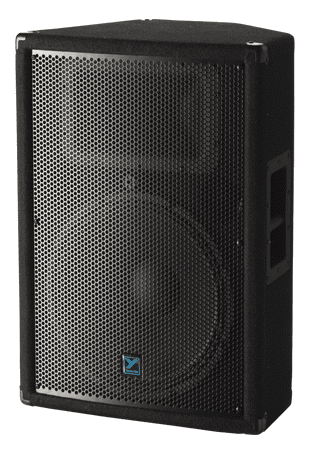

Yorkville YX15P Powered
Roll over image to zoom in Click on image to zoom
Yorkville YX15P Powered

Yorkville YX15P Powered

Save $170.00
YorkvilleSKU: YX15P
Price:
$439.00 $609.00

Description


15-inch / 1.4-inch - 200 watts

Engineered in North America, the YX15P benefits from Yorkville's forty plus years of PA enclosure and electronics design experience. This 15-inch / 1-inch horn bi-amplified active loudspeaker is a highly effective sound system solution for any application where a powered cabinet is preferred.


Features

  • Integrated 200 Watt Amplifier
  • Bi-Amplified Power Module
  • 15-inch Woofer
  • 1-inch Compression Driver (1.4-inch Voicecoil)
  • Designed for Front-of-House or Monitor applications
  • 90° x 40° Horn with with Peak Limiter Protection
  • Built-in Mixer with Two Band EQ and LF Roll-Off Mode Switch
  • Paralleled XLR and 1/4-inch Inputs
  • Integrated All Metal Speaker Standmount Adaptor
  • Solid 5/8-inch (15mm) Plywood Construction


Specifications

System Type 2-Way
Active or Passive Active
Program Power (Watts) 200
Biampable Self Powered
Max SPL (dB) 122
Frequency Response (Hz +/- 3dB) 60 - 20k
Crossover Frequency (Hz) 1800
Driver Configuration 15 inch / 1.4 inch
HF Driver(s) 1.4 inch Aluminum (1 inch Throat)
HF Horn Injection Molded ABS
HF Dispersion (°H x °V) 90 x 40
HF Protection Peak Limiter
LF Driver(s) 15 inch Ceramic
Total Power (Watts) 200
HF Power Amplifier (Watts) 20
HF Amplifier Type Class A/B
LF Power Amplifier (Watts) 180
LF Amplifier Type Two Tier Class H
Power Cable Yes
Power Switch Yes
Power Consumption (typ/max) 120 / 310 VA
Inputs 2
Inputs - 1/4" Jacks 1 Line / 1 Mic (XLR Combi jacks)
Input Sensitivity (Vrms Sine) +4dBv / 1.23V
Mixer Controls Mic Gain
Line In Gain
Bass/Mid/Treble
Level Controls Main Volume
Limiter Yes
LED Indicators Power/Activity/Limit
Corners Metal
Feet Plastic Glides
Bar Handles 2 (Side)
Pole Mount Adapter (1 3/8"-3.5cm) Yes
Enclosure Materials 15mm (5/8inch) Plywood
Covering / Finish Custom Punched Black Perforated Metal
Optional Covering / Finishes Black Ozite
Dimensions (DWH xbackW, inches) 15.5 x 19.25 x 27.5 x 7.5
Dimensions (DWH xbackW, cm) 39.4 x 48.9 x 69.9 x 19
Weight (lbs/kg) 51 / 23.1

Specifications subject to change without notice
