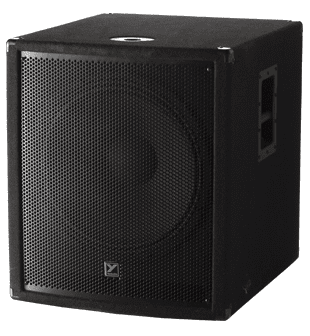

Yorkville YX18SC passive
Roll over image to zoom in Click on image to zoom
Yorkville YX18SC passive

Yorkville YX18SC passive

Save $150.00
YorkvilleSKU: YX18SC
Price:
$399.00 $549.00

Description


18-inch - 400 watts

The passive YX18SC uses the tried and true vented 18-inch front loaded bass reflex subwoofer design. The internal passive crossover allows the 400-watt YX18SC to be added to any system without additional external processing.




Features

  • 400 Watt Subwoofer
  • 18-inch Woofer
  • Bass Reflex Cabinet Design
  • 6 Ohm Design for Easy Amplifier Configuration
  • 45Hz - 150Hz Frequency Response
  • Internal Passive Low-Pass Filter for Plug-And-Play Simplicity
  • 2 x Speakon™ and 2 x 1/4-inch Parallel Inputs
  • Integrated All Metal Speaker Pole Mount Adaptor
  • Solid 5/8-inch (15mm) Plywood Construction
  • YX18SB (Painted Version)
  • Made in Canada


Specifications

System Type Subwoofer
Active or Passive Passive
Program Power (Watts) 400
Nominal Impedance (Ohms) 6
Sensitivity (dB @1Watt/1m) 98
Max SPL (dB) 124
Frequency Response (Hz +/- 3dB) 45 - 150
Crossover Frequency (Hz) 150
LF Driver(s) 18 inch
LF Program Power(Watts) 400
Inputs - 1/4" Jacks 2
Inputs - Speakon 4-pin 2
Other Controls / Features Built-in passive low-pass filter for Plug-and-play simplicity
Corners Metal
Feet Plastic Glides
Wheels No
Bar Handles 2 (Side)
Pole Mount Adapter (1 3/8"-3.5cm) Yes (Top)
Enclosure Materials 15mm (5/8inch) Plywood
Grille Custom Punched Black Perforated Metal
Covering / Finish Black Ozite
Dimensions (DWH xbackW, inches) 26 x 22 x 25
Dimensions (DWH xbackW, cm) 66 x 55.9 x 63.5
Weight (lbs/kg) 74 / 33.6

Specifications subject to change without notice
